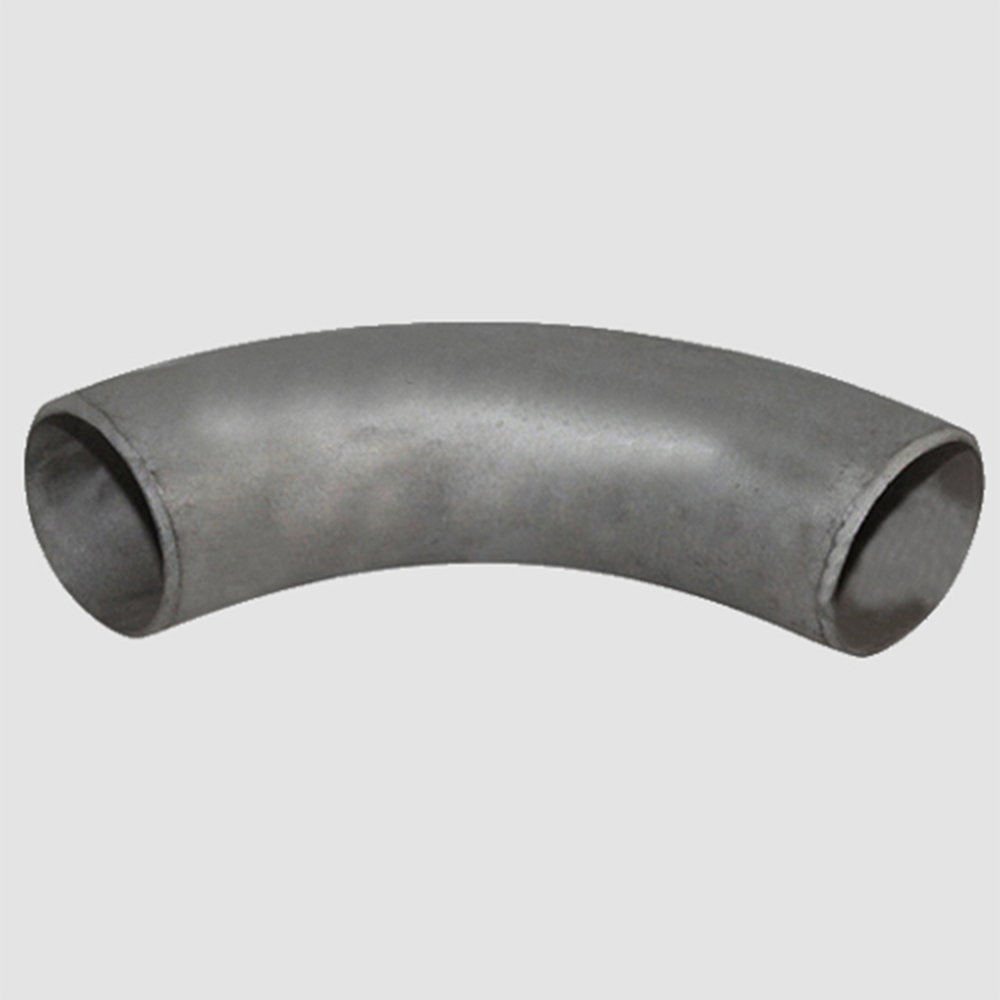

The elbow (also called elbow pipe) is a key fitting used to change the direction of fluid flow in a piping system. It can turn the pipe from one direction to another and is often used to connect different parts of a piping system or change the direction of the pipe layout. The main function of the elbow is to achieve the turning of the pipe, avoid the waste of space in the straight pipe layout, and ensure the smooth flow of the fluid in the pipe. The elbow is generally classified according to parameters such as the bending angle, radius, material and caliber. Common elbow angles include 45°, 90°, 180°, etc. Pipe elbows are widely used in various types of pipeline systems such as petroleum, chemical, electric power, construction, water supply, and drainage.

Phone

+86 15733710333

info@global-flange.com

WhatsApp / WeChat

+86 15733710333

Related Products

List

1. Product features:

Change the flow direction of the pipeline:
The elbow can flexibly guide the pipeline fluid from one direction to another, which is suitable for various complex pipeline layouts, can save space and avoid unnecessary equipment installation.

Multiple angles:
Common elbow angles are 45°, 90°, 180°, etc. You can choose different angles according to the design requirements of the pipeline system to adapt to the changes in the flow direction of the pipeline fluid.

Multiple radii:
The radius of the elbow is generally divided into standard elbows and long radius elbows. Long radius elbows can effectively reduce the resistance in fluid flow and are suitable for pipeline systems that require large flow and low pressure loss.

High strength and pressure resistance:
The elbow is usually made of high-strength materials, has good pressure resistance, can withstand high pressure and high temperature conditions, and is suitable for complex industrial pipeline systems.

Strong adaptability:
The elbow can provide different materials (such as stainless steel, carbon steel, alloy steel, plastic, etc.), different calibers, different pressure levels and different connection methods (such as welding, flanges, threads, etc.) according to the actual needs of the pipeline to meet the requirements of various working environments.

Fluid flow optimization:
Bends can optimize fluid flow, reduce friction resistance of fluid in pipes, and reduce energy consumption through reasonably designed bending angles and radii.

2. Technical parameters:

Material	Carbon steel, stainless steel, alloy steel, plastic, copper, etc.
Specification	DN15 ~ DN1200 (1/2" ~ 48"), can be customized according to customer requirements
Bending Angle	Common angles such as 45°, 90°, 180°, and other angles can also be customized according to needs
Pressure level	PN6 ~ PN250 (select according to material and working conditions)
radius	Standard and long radius elbows
Connection	Welding, threaded connection, flange connection, socket connection, etc.
Temperature range	-50°C ~ 450°C, the specific temperature range depends on the material and working conditions

3. Application fields

Petroleum and natural gas industry:
Used in the oil and natural gas pipeline system, it helps to change the flow direction of the pipeline, connect different parts of the pipeline, and adapt to the transportation needs of oil and natural gas.

Chemical industry:
In the pipeline system of the chemical plant, the elbow is used to change the flow direction of chemical substances, which is suitable for different fluid media and chemical environments.

Power industry:
The pipeline system in the power industry needs to connect different steam pipes, cooling water pipes, etc. through elbows to ensure the smooth flow of fluids in the operation of the power plant.

Building water supply and drainage industry:
In the building water supply and drainage system, elbows are used to connect different pipes, change the direction of the pipes, and ensure the smooth flow of water in the building.

Metallurgical industry:
The pipeline system in metallurgical equipment needs to realize the distribution of gas or liquid flow through elbows, and the elbows can withstand high temperature and high pressure environmental requirements.

Food and pharmaceutical industry:
In the food and pharmaceutical industry, elbows are used to change the flow direction of the pipeline, especially in the process of transmitting liquids and gases, to ensure product quality and pipeline hygiene.

Municipal pipelines:
In municipal water supply and drainage pipelines, elbows are used to change the flow direction of fluids and ensure the normal operation of the pipeline system.

4. Advantages:

Strong flexibility:
Edges can be designed with different angles and radii according to needs, and can flexibly adapt to various pipeline layouts.

High strength:
Made of high-strength materials, elbows can withstand higher pressures and adapt to various harsh working environments.

Fluid flow optimization:
Reasonably designed elbows can reduce the friction loss of fluids in the curved part, optimize fluid flow, and improve the efficiency of the pipeline system.

Corrosion resistance:
Edges can choose suitable corrosion-resistant materials according to the medium to ensure that they will not be damaged by corrosion during long-term use.

Easy installation:
Edges have various connection methods, including welding, flange connection, threading, etc., which are easy to install and reduce construction difficulty.

Quality assurance:
All elbow products are designed and manufactured in strict accordance with international standards, and have passed multiple quality tests to ensure their pressure resistance, corrosion resistance and service life. Each elbow undergoes strict testing before leaving the factory to ensure its stable and reliable quality.

5. Packaging and transportation:

Packaging: According to the specifications and quantity of the elbow, wooden boxes, pallets, bubble films, etc. are usually used for packaging to ensure that the product is not damaged during transportation.

Transportation: We provide a variety of transportation methods such as sea, air and land transportation to ensure on-time delivery according to customer needs.

6. Precautions:

Inspection before installation: Before installing the elbow, check whether the contact surface of the pipe is flat and clean to avoid affecting the sealing effect.

Tightening requirements: Ensure that the bolts at the elbow connection are evenly tightened to avoid leakage or loosening due to loose connection.

Regular inspection: Regularly check the connection of the elbow during use to ensure its sealing and firmness to avoid loosening or leakage.

Applicable pressure range: The elbow is suitable for medium and high pressure pipeline systems. Please choose the appropriate specifications and materials according to actual needs.
